Construct CDC Stream from Snapshot Source
Description
Suitable for multi-source streaming and stream-static patterns where one or more sources are snapshot based.
Use when:
You have more than one snapshot sources and want to combine and stream changes to a target table.
You have a combination of snapshot and cdc sources and want to combine and stream changes to a target table.
Note
This pattern is not intended to be used in isolation. It is intended to convert snapshot sources into a CDC stream that can be used as part of a multi-source streaming or stream-static patterns.
Layers:
Bronze (Construct CDC stream)
Silver (Use CDC stream)

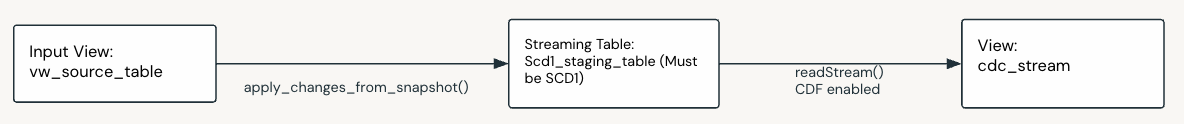

Data Flow Components:
No. |
Component |
Description |
M / O |
|---|---|---|---|
1 |
Input View |
Input view created over the snapshot source. In incremental mode this is a physical SDP view created over the source that can look different at any given time representing the latest state of the source. In historical mode, this is a logical component as instead it’d be configured to automatically get the next snapshot as the source. |
M |
2 |
Change Flow |
An SCD1 Change Flow that streams changes from the snapshot source to a staging table. This needs to be an SCD1 to allow for physical deletes in the snapshot source to be propagated to the CDF as a delete operation, SCD2 does not support this. |
M |
3 |
Staging Table |
A staging table with CDF enabled. |
M |
4 |
View |
A view over the staging table that reads a stream from the staging table’s CDF. This will be the CDC stream of the snapshot source. This view can now be an input view in any of the Multi-Source Streaming patterns below. |
M |
* M / O: Mandatory or Optional.
Feature Support
Supported |
Not Supported |
|---|---|
|
|
Considerations and Limitations
Important
In historical mode, if there are multiple snapshots processed in the first run, reading stream from the CDF of the staging table will only return the lastest snapshot’s records as inserts. To get all the changes from all historical snapshots, set startingVersionFromDLTSetup to true when reading the CDF of the staging table, see Data Flow Spec - Source Details.
Samples
Construct CDC stream from snapshot source in bronze:
Bundle:
samples/bronze_sampleSample:
samples/bronze_sample/src/dataflows/feature_samples/dataflowspec/historical_snapshot_datetime_scd1_main.json
Use CDC stream as input view in silver:
Bundle:
samples/silver_sampleSample:
samples/silver_sample/src/dataflows/feature_samples/dataflowspec/customer_snapshot_source_main.json
Example Data Flow
The sample demonstrates converting a snapshot source into a CDC stream:
Source snapshot table “customer” is configured with incremental mode
CDC from Snapshot (Change Flow) detects changes between snapshots
Changes are written to staging table in SCD1 mode with CDF enabled
Final view reads CDF stream from staging table
CDC stream can now be used as input to other streaming patterns
Day 1 Load
Source Table (Snapshot)
CUSTOMER
customer_id first_name last_name email updated_timestamp 1 John Doe john.doe@example.com 2023-01-01 10:00 2 Jane Smith jane.smith@example.com 2023-01-01 10:00 Staging Table (SCD1)
CUSTOMER Staging Table
customer_id first_name last_name email updated_timestamp 1 John Doe john.doe@example.com 2023-01-01 10:00 2 Jane Smith jane.smith@example.com 2023-01-01 10:00 CDF of CUSTOMER Staging Table
customer_id first_name last_name email updated_timestamp _change_type _commit_version _commit_timestamp 1 John Doe john.doe@example.com 2023-01-01 10:00 insert 1 2023-01-01 18:00 2 Jane Smith jane.smith@example.com 2023-01-01 10:00 insert 1 2023-01-01 18:00
Day 2 Load
Source Table (Snapshot)
CUSTOMER
customer_id first_name last_name email updated_timestamp 1 John Doe jdoe@example.com 2023-01-02 10:00 3 Alice Green alice.green@example.com 2023-01-02 10:00 4 Joe Bloggs joe.bloggs@example.com 2023-01-02 10:00 Staging Table (SCD1)
CUSTOMER Staging Table
customer_id first_name last_name email updated_timestamp 1 John Doe jdoe@example.com 2023-01-02 10:00 3 Alice Green alice.green@example.com 2023-01-02 10:00 4 Joe Bloggs joe.bloggs@example.com 2023-01-02 10:00 CDF of CUSTOMER Staging Table
customer_id first_name last_name email updated_timestamp _change_type _commit_version _commit_timestamp 1 John Doe john.doe@example.com 2023-01-01 10:00 insert 1 2023-01-01 18:00 2 Jane Smith jane.smith@example.com 2023-01-01 10:00 insert 1 2023-01-01 18:00 1 John Doe jdoe@example.com 2023-01-02 10:00 update 2 2023-01-02 18:00 2 Jane Smith jane.smith@example.com 2023-01-02 10:00 delete 2 2023-01-02 18:00 3 Alice Green alice.green@example.com 2023-01-02 10:00 insert 2 2023-01-02 18:00 4 Joe Bloggs joe.bloggs@example.com 2023-01-02 10:00 insert 2 2023-01-02 18:00
Day 3 Load
Source Table (Snapshot)
CUSTOMER
customer_id first_name last_name email updated_timestamp 1 John Doe jdoe@example.com 2023-01-02 10:00 4 Joe Bloggs joe.bloggs@example.com 2023-01-03 10:00 Staging Table (SCD1)
CUSTOMER Staging Table
customer_id first_name last_name email updated_timestamp 1 John Doe jdoe@example.com 2023-01-02 10:00 4 Joe Bloggs joe.bloggs@example.com 2023-01-03 10:00 CDF of CUSTOMER Staging Table
customer_id first_name last_name email updated_timestamp _change_type _commit_version _commit_timestamp 1 John Doe john.doe@example.com 2023-01-01 10:00 insert 1 2023-01-01 18:00 2 Jane Smith jane.smith@example.com 2023-01-01 10:00 insert 1 2023-01-01 18:00 1 John Doe jdoe@example.com 2023-01-02 10:00 update 2 2023-01-02 18:00 2 Jane Smith jane.smith@example.com 2023-01-02 10:00 delete 2 2023-01-02 18:00 3 Alice Green alice.green@example.com 2023-01-02 10:00 insert 2 2023-01-02 18:00 4 Joe Bloggs joe.bloggs@example.com 2023-01-02 10:00 insert 2 2023-01-02 18:00 3 Alice Green alice.green@example.com 2023-01-03 10:00 delete 3 2023-01-03 18:00
